1003 Handle REST Service


.
1003 Handle REST Service
How to write Google App Script to handle REST Service

Objective

1. Create generic record utility functions
        addRecord()
        editRecord()
        deleteRecord()
        selectRecord()
        selectRecords()
2. Create record utility manager ie manageRecord()

1) Create a spreadsheet

eg HandleRestService.
Create  a sheet “persons”.
Set the first row…

tid
timestamp
name
pid
age
Set the field format for the fields especially tid field...

2) Open Code Editor within the spreadsheet

eg HandleRestService.

3) Edit the Script

We write few functions to perform specific tasks:

logGlobalVar()
Log the global var
doGet() and doPost()
To handle Get and Post request
handleResponse()
Read action value and respond
manageRecords
Handle record management request and return TextOutput
findInArray
Find string in the array
addRecords(), editRecords(), deleteRecords(), selectRecord(), selectRecords()
Record management functions
Test functions
To test for expected results

/*global var*/
var SCPID=ScriptApp.getScriptId(); /*script id*/
var SST=SpreadsheetApp.getActiveSpreadsheet(); /*active spreadsheet */
var SSTID=SpreadsheetApp.getActiveSpreadsheet().getId(); /*spreadsheet id*/
var SSTFILE=DriveApp.getFileById(SSTID); /*get file*/
var Folders = SSTFILE.getParents(); /*get parent collection*/
 while (Folders.hasNext()) {
   var Folder = Folders.next();
   Logger.log(Folder.getName());
   var FOLID = Folder.getId(); /*get id for first parent item*/
 }
/*log the global var*/
function logGlobalVar(){
  Logger.log("script id:"+SCPID);
  Logger.log("sheet id:"+SSTID);
  Logger.log("folder id:"+FOLID);
  Logger.log("SST:"+SST.getName());
}
/* web request listeners */
function doGet(e) {return handleResponse(e);}
function doPost(e) {return handleResponse(e);}
/* handle action request */
function handleResponse(e) {
 var lock = LockService.getPublicLock();
 lock.waitLock(30000); // wait 30 seconds before conceding defeat.
  try {
    var action = e.parameter.action;
    if (action == 'test') {
      return getTest(e);
    }else if (action == 'addperson') {
      return manageRecords("addperson",e); //records command,parameter
    }else if (action == 'editperson') {
      return manageRecords("editperson",e);
    }else if (action == 'deleteperson') {
      return manageRecords("deleteperson",e);
    }else if (action == 'selectperson') {
      return manageRecords("selectperson",e);
    }else if (action == 'selectpersons') {
      return manageRecords("selectpersons",e);
    }
  }
 catch (e) {/*if error return this*/return ContentService.createTextOutput(JSON.stringify({"result": "error","error": e})).setMimeType(ContentService.MimeType.JSON);}
 finally { /*release lock*/ lock.releaseLock();}
}
/* handle records management */
function manageRecords(command,e){
  var output;
  switch (command){
    case "addperson":
      output=addRecord("persons",e);
      break;
    case "editperson":
      output=editRecord("persons",e);
      break;
    case "deleteperson":
      output=deleteRecord("persons",e);
      break;
    case "selectperson":
      output=selectRecord("persons",e);
      break;
    case "selectpersons":
      output=selectRecords("persons",e);
      break;
  }
  return ContentService
  .createTextOutput(JSON.stringify(output))
  .setMimeType(ContentService.MimeType.JSON);
}
/* findInArray(array,colno,searchvalue){} */
/* find a string in array row and columns */
/* if colnos is null then concat all cols */
function findInArray(array,colnos,searchvalue){
  output=[];
  for (var rowno in array){
      if (colnos==null){ /*concat cols*/
        //Logger.log(array[rowno]);
        var strtest=JSON.stringify(array[rowno]);
        var n = strtest.search(searchvalue);
        if (n>=0){
          array[rowno].unshift(rowno);
          output.push(array[rowno]);
        }
      }/*if (colnos==null)*/
        else{
          var strtest='';
          for(var colno in colnos){
            strtest=strtest.concat((strtest==''?'':','),array[rowno][colnos[colno]]);
          }
          //Logger.log(strtest);
          var n = strtest.search(searchvalue);
          if (n>=0){
           array[rowno].unshift(rowno);
           output.push(array[rowno]);
          }/*if*/
        }/*else*/
  }/*row*/
  return output;
}/*function findInArray*/
function testFindInArray(){
  var array=[['dadu','0','badi'],['didi','1','bada'],['dida','2','bidi'],['didu','3','bidu']];
  //output=findInArray(array,null,"da");
  //Logger.log(output);
  //output=findInArray(array,[2],"da");
  //Logger.log(output);
  output=findInArray(array,[0,2],"da");
  Logger.log(output);
}
/* ref: https://github.com/AishwaryT/Google-app-script-crud/blob/master */
/* add record */
function addRecord(recordsname, e) {
  var Sheet = SST.getSheetByName(recordsname);
  try {
    // we'll assume header is in row 1 but you can override with header_row in GET/POST data
    var headRow = e.parameter.header_row || 1;
    var headers = Sheet.getRange(headRow, 1, 1, Sheet.getLastColumn()).getValues()[0];
    var rownum = Sheet.getLastRow() + 1; // get next row
    var row = [];
    var d = new Date();
    // loop through the header columns
    for (colno in headers) {
      if (headers[colno] == "tid") { // special case if you include a 'timestamp' column
        row.push(d.getTime());
        } else if (headers[colno] == "timestamp") { // special case if you include a 'timestamp' column
          row.push(d);
          } else { // else use header name to get data
            row.push(e.parameter[headers[colno]]);
            }
      }
    // more efficient to set values as [][] array than individually
    Sheet.getRange(rownum, 1, 1, row.length).setValues([row]);
    // return json success results with the row number of the newly added record
    return rownum
    } catch (e) {
      // if error return this
      return 0
      }
}
/* edit record */
function editRecord(recordsname, e) {
  var Sheet = SST.getSheetByName(recordsname);
  try {
    // we'll assume header is in row 1 but you can override with header_row in GET/POST data
    var headRow = e.parameter.header_row || 1;
    var headers = Sheet.getRange(headRow, 1, 1, Sheet.getLastColumn()).getValues()[0];
    var array =Sheet.getRange(2, 1, Sheet.getLastRow()-1, Sheet.getLastColumn()).getValues();
    var found=findInArray(array,[0],e.parameter['tid']);/*found is array*/
    if (found.length>0){
      var rownum=Number(found[0][0]);/*pickup the first item of the first row ie the array row num*/
      rownum+=2;/*change from zero-based to one-based and add the headRow*/
    }
    //Logger.log(e.parameter['tid']);
    //Logger.log(rownum);
    if (rownum == undefined) {
      //row not found
      return -1
      }
    var row = [];
    var d = new Date();
    // loop through the header columns
    for (i in headers) {
      if (headers[i] == "tid") { // special case if you include a 'tid' column
        row.push(e.parameter['tid']);
        } else if (headers[i] == "timestamp") { // special case if you include a 'timestamp' column
          row.push(d);
          } else { // else use header name to get data
            row.push(e.parameter[headers[i]]);
            }
      }
    Sheet.getRange(rownum, 1, 1, row.length).setValues([row]);
    // return json success results with the row number of the newly added record
    return rownum;
    } catch (e) {
      // if error return this
      return 0
      }
}
/* test edit record */
function testEditRecord(){
  var parameter={action:'editrecord',tid:'1499613316279',name:'vovoi',pid:'7474',age:'44'};
  var e={parameter:parameter};
  Logger.log(editRecord('persons', e));
}
/* delete record */
function deleteRecord(recordsname, e) {
  var Sheet = SST.getSheetByName(recordsname);
  try {
    // we'll assume header is in row 1 but you can override with header_row in GET/POST data
    var headRow = e.parameter.header_row || 1;
    var headers = Sheet.getRange(headRow, 1, 1, Sheet.getLastColumn()).getValues()[0];
    var array =Sheet.getRange(2, 1, Sheet.getLastRow()-1, Sheet.getLastColumn()).getValues();
    var found=findInArray(array,[0],e.parameter['tid']);/*found is array*/
    if (found.length>0){
      var rownum=Number(found[0][0]);/*pickup the first item of the first row ie the array row num*/
      rownum+=2;/*change from zero-based to one-based and add the headRow*/
    }
    //Logger.log(e.parameter['tid']);
    //Logger.log(rownum);
    if (rownum == undefined) {
      //row not found
      return -1
      }
    // delete row by rownum
    Sheet.deleteRow(rownum);
    return rownum
  } catch (e) {
    // if error return this
    return 0
  }
}
/* test delete record */
function testDeleteRecord(){
  var parameter={action:'deleterecord',tid:'1499613316279'};
  var e={parameter:parameter};
  Logger.log(deleteRecord('persons', e));
}
/* select record */
function selectRecord(recordsname, e) {
  var Sheet = SST.getSheetByName(recordsname);
  try {
    // we'll assume header is in row 1 but you can override with header_row in GET/POST data
    var headRow = e.parameter.header_row || 1;
    var headers = Sheet.getRange(headRow, 1, 1, Sheet.getLastColumn()).getValues()[0];
    var array =Sheet.getRange(2, 1, Sheet.getLastRow()-1, Sheet.getLastColumn()).getValues();
    var found=findInArray(array,[0],e.parameter['tid']);/*found is array*/
    if (found.length>0){
      var rownum=Number(found[0][0]);/*pickup the first item of the first row ie the array row num*/
      rownum+=2;/*change from zero-based to one-based and add the headRow*/
    }
    //Logger.log(e.parameter['tid']);
    //Logger.log(rownum);
    if (rownum == undefined) {
      //row not found
      return -1
      }
    var row = {};
    row['_row']=rownum;
    var values = Sheet.getRange(rownum, 1, 1, Sheet.getLastColumn()).getValues()[0];
    for (i in headers) {
      row[headers[i]] = values[i];
      }
    // return json success results with the row
    return row;
    } catch (e) {
      // if error return this
      return e;
      }
}
/* test select record */
function testSelectRecord(){
  var parameter={action:'selectrecord',tid:'1498794221687'};
  var e={parameter:parameter};
  Logger.log(selectRecord('persons', e));
}
/* get all records */
function selectRecords(recordsname, e) {
  var Sheet = SST.getSheetByName(recordsname);
  try {
  // we'll assume header is in row 1 but you can override with header_row in GET/POST data
  var headRow = e.parameter.header_row || 1;
  var headers = Sheet.getRange(headRow, 1, 1, Sheet.getLastColumn()).getValues()[0];
  var rownum = Sheet.getLastRow()-1;
  //Logger.log(e.parameter['tid']);
  //Logger.log(rownum);
  if (rownum == undefined||rownum==1) {
    //row not found
    return -1
  }
  var rows = [];
  var values = Sheet.getRange(2, 1, Sheet.getLastRow(), Sheet.getLastColumn()).getValues();
  for (var i = 0; i < values.length - 1; i++) {
    var row = {};
    row['_row']=i+2;/*change from zero-based to one-based and add the headRow*/
    for (j in headers) {
      row[headers[j]] = values[i][j];
      }
    rows.push(row);
    }
  return rows;
} catch (e) {
  return e;
  }
}
/* test select records */
function testSelectRecords(){
  var parameter={action:'selectrecords'};
  var e={parameter:parameter};
  Logger.log(selectRecords('persons', e));
}

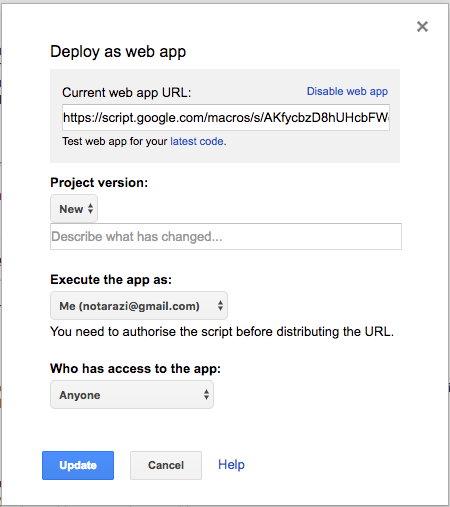

4) Publish as Web App

Deploy

Execute the app using your account (because the app needs to access the spreadsheet that is privately accessible by your account only) but allow anyone to access the apps.

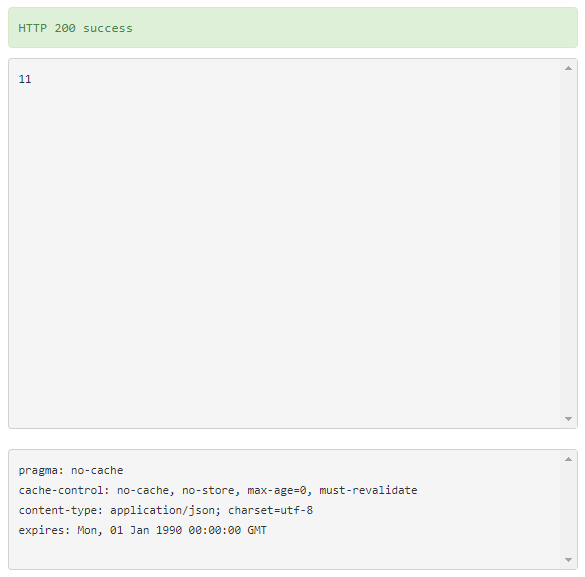

5) Test

You can test by entering the URL request with parameters eg
Or, you can use REST tool such as postman or https://resttesttest.com/ .

COPY:

REFS:



.
